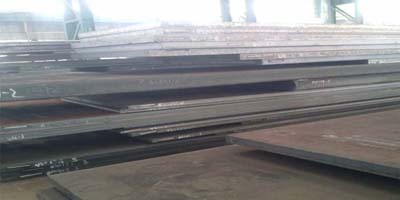

StE355 steel plate is a kind of material for boiler and pressure vessel steel. DIN17102 StE355 Pressure vessel steel plate has the good grain and Mechanical properties.DIN17102 StE355 steel sheet is characterized by a minimum yield strength of 295-335 MPa and by good weldability, so StE355 steel plate is mainly used to for manufacturing boilers, pressure vessels and pipes transporting hot liquids.
DIN17102 StE355 steel Specification
Thickness:6-550mm
Width:1500-4020mm
Length:3000-18000mm
StE355 steel sheet Chemical composition(%)
C≤0.20 Si:0.10-0.50 Mn:0.90-1.55 P≤0.035 S≤0.030 N≤0.02 Al≤0.02 Cr≤0.30 Cu≤0.20 Mo≤0.08Ni≤0.30 Nb≤0.05 V≤0.10 Nb+Ti+V≤0.12
StE355 steel Mechanical properties
Yiled strength Mpa:295-335 Tensile strength Mpa:450-630 Elongation(%):22
Equivalent grades of grade DIN17102 StE355 Pressure vessel steel plate
USA |
EN10028-2 |
EN10028-3 |
UNI 5859 |
BS 1501 |
JIS3103 |
A537CL1 |
P355GH |
P355N |
Fe 5101KW |
224Gr..460,490,400,430 |
SB 480 |
Technique: Hot Rolled
Surface Treatment: uncoated
Trade Terms: FOB, CFR, CIF
Payment Terms: T/T, Irrevocable at sight L/C
Delivery State: HR,TMCP, Q&T, N, T, N&T,Z15,Z25,Z35, Ultrasonic test, Sharp V-notch impact test, HIC test ,etc
Bebon International continuously uphold the purpose of mutual benefit, we always provide StE355 Pressure vessel steel plate of preferential prices and integrated services. If you place an order about the DIN17102 StE355 steel plate, we will give you a satisfactory answer.
