S460NL steel plate grade material No. Is 1.0490. S460NL steel is a kind of normalized or normalized rolled weldable fine grain structural steels.S460NL steel plate is a high strength construction steel which has been normalised and is excellent for situations where a tough strong strong structural steel is required. It also has improved toughness at low temperature.
The delivery condition for EN10025 S460NL weldable fine grain structural steel sheet must be Normalized heat treatment or Normalized rolled way. EN10025 S460NL steel have the good weldable and fine grain structural property. So, it can be used into the steel structural or welded vessel or pressure vessels.
EN10025 S460NL steel sheet Mechanical properties
Yield strength Mpa:370-460 Tensile strength Mpa:530-720 Elongation(%) Min:17
S460NL steel plate Chemical composition(%)
C≤0.22 Si≤0.65 Mn:0.95-1.80 P≤0.035 S≤0.030 Nb≤0.06 V≤0.22 Al≤0.15 Ti≤0.06Cr≤0.35 Ni≤0.85 Mo≤0.13 Cu≤0.60 N≤0.027
S460NL Normalized steel V shaped impact test temperature and min energy
Grade |
20 |
0 |
-10 |
-20 |
-30 |
-40 |
-50 |
S460NL |
63 |
55 |
51 |
47 |
40 |
31 |
27 |

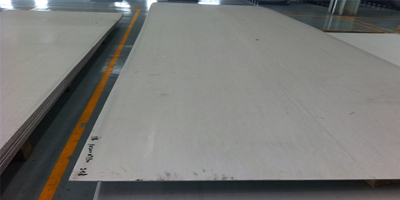

S460NL weldable fine grain structural steel plate Specification
Thickness:2-250mm
Width:1000-3800mm
Length:3000-18000mm
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Henan BEBON Internatoinal can be offer S460NL weldable fine grain structural steel plate from stock and the material is available for shipping worldwide. The material comes with mill test certification and stamping and is therefore fully traceable. If you have any need of EN10025 S460NL steel sheet,pls contact with us in any time.
